TIMKEN BEARINGS
TIMKEN CYLINDRICAL ROLLER BEARINGS

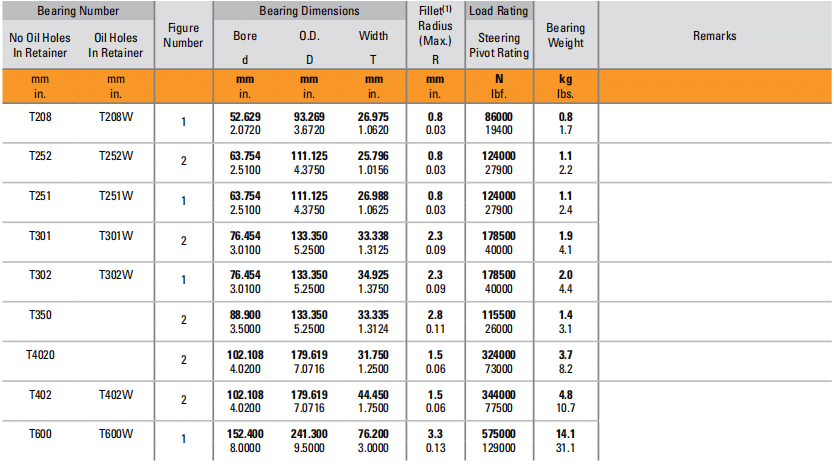

| Bearing No Oil Holes In Retainer | Number Oil Holes In Retainer | Figure Number | Bearing Dimensions | Fillet(1) Radius (Max.) R | Load Rating Steering Pivot Rating | Bearing Weight | Remarks | ||
| Bore d | O.D. D | Width T | |||||||
| mm in. | mm in. | mm in. | mm in. | mm in. | mm in. | N lbf. | kg lbs. | ||
| T208 | T208W | 1 | 52.629 2.0720 | 93.269 3.6720 | 26.975 1.0620 | 0.8 0.03 | 86000 19400 | 0.8 1.7 | |
| T252 | T252W | 2 | 63.754 2.5100 | 111.125 4.3750 | 25.796 1.0156 | 0.8 0.03 | 124000 27900 | 1.1 2.2 | |
| T251 | T251W | 1 | 63.754 2.5100 | 111.125 4.3750 | 26.988 1.0625 | 0.8 0.03 | 124000 27900 | 1.1 2.4 | |
| T301 | T301W | 2 | 76.454 3.0100 | 133.350 5.2500 | 33.338 1.3125 | 2.3 0.09 | 178500 40000 | 1.9 4.1 | |
| T302 | T302W | 1 | 76.454 3.0100 | 133.350 5.2500 | 34.925 1.3750 | 2.3 0.09 | 178500 40000 | 2.0 4.4 | |
| T350 | 2 | 88.900 3.5000 | 133.350 5.2500 | 33.335 1.3124 | 2.8 0.11 | 115500 26000 | 1.4 3.1 | ||
| T4020 | 2 | 102.108 4.0200 | 179.619 7.0716 | 31.750 1.2500 | 1.5 0.06 | 324000 73000 | 3.7 8.2 | ||
| T402 | T402W | 2 | 102.108 4.0200 | 179.619 7.0716 | 44.450 1.7500 | 1.5 0.06 | 344000 77500 | 4.8 10.7 | |
| T600 | T600W | 1 | 152.400 8.0000 | 241.300 9.5000 | 76.200 3.0000 | 3.3 0.13 | 575000 129000 | 14.1 31.1 | |
