SKF Matched tapered roller bearings 32034 X/DF

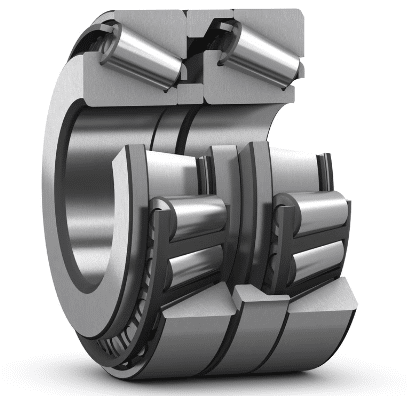

The SKF assortment of matched single row tapered roller bearings (fig. 1) is based on popular sizes of single row tapered roller bearings. Depending on the application requirements, matched tapered roller bearings are available in different designs and variants:

Matched bearings arranged face-to-face
Matched bearings arranged back-to-back
Matched bearings arranged in tandem

SKF BEARINGS various selection , welcome inquiry online or email me directly to : info@cmtgbearing.com.

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	T[mm]	C[kN]	C₀[kN]	[r/min]	[r/min]
33122/DF	110	180	112	781	1 250	2 200	3 400
30224/DF	120	215	87	716	915	2 000	3 000
31324 X/DF	120	260	136	992	1 400	1 400	2 400
32024 X/DF	120	180	76	513	830	2 200	3 400
32224/DF	120	215	123	983	1 400	2 000	3 000
32324/DF	120	260	181	1 466	2 240	1 600	2 600
33024/DF	120	180	96	611	1 080	2 200	3 400
31326 X/DF	130	280	144	1 110	1 560	1 300	2 400
32226/DF	130	230	135.5	1 012	1 660	1 600	2 800
32926/DF	130	180	64	420	735	2 200	3 200
30228/DF	140	250	91.5	773	1 140	1 500	2 600
31328 X/DF	140	300	154	1 264	1 800	1 200	2 200
32028 X/DF	140	210	90	692	1 160	1 900	2 800
32228/DF	140	250	143.5	1 185	2 000	1 500	2 600
30230/DF	150	270	98	781	1 120	1 400	2 400
31330 X/DF	150	320	164	1 427	2 040	1 100	2 000
32030 X/DF	150	225	96	782	1 320	1 800	2 600
32230/DF	150	270	154	1 341	2 280	1 400	2 400
30232/DF	160	290	104	971	1 460	1 300	2 200
32032 X/DF	160	240	102	912	1 560	1 600	2 400
32232/DF	160	290	168	1 602	2 800	1 300	2 200
32034 X/DF	170	260	114	1 071	1 830	1 500	2 200
32234/DF	170	310	182	1 843	3 250	1 200	2 000
30236/DF	180	320	114	1 079	1 630	1 200	2 000
32036 X/DF	180	280	128	1 360	2 320	1 400	2 200
32236/DF	180	320	182	1 833	3 250	1 100	1 900
32936/DF	180	250	90	746	1 460	1 500	2 200
32038 X/DF	190	290	128	1 381	2 400	1 300	2 000
32938/DF	190	260	90	760	1 530	1 400	2 200
32040 X/DF	200	310	140	1 372	2 750	1 100	1 900

CMTG BEARING CO.,LIMITED. has been engaged in bearing industry for many years, we provide a wide selections of brands, including FAG bearing, SKF bearing,NSK bearing,Nachi bearing, TIMKEN bearing, THK Linear Guide and Linear Block …ect.

Bearing typies including standard bearing and non-standard bearings, linear bearings, automotive bearings, large bearings, railway bearings,spherical plain bearings, high temperature,super-precision bearings, as well as some rare types customized to your need.

Your inquiries will have our highest attention. thanks.
