SKF Bearings LS 90120

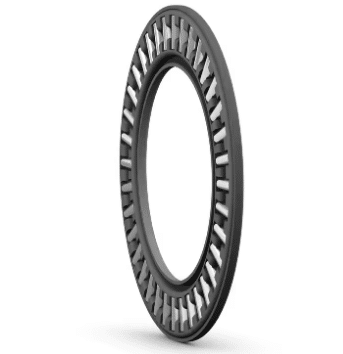

Needle roller thrust bearings
SKF needle roller thrust bearings are fitted with a form-stable cage to reliably retain and guide a large number of needle rollers. Needle roller thrust bearings provide a high degree of stiffness within a minimum axial space. In applications where the faces of adjacent machine components can serve as raceways, needle roller thrust bearings take up no more space than a conventional thrust washer.

SKF BEARINGS various selection , welcome inquiry online or email me directly to : info@cmtgbearing.com.

SKF needle roller thrust bearings

Designation	Principal dimensions
	d[mm]	D[mm]	B[mm]	d1[mm]	D1[mm]
GS 81115	75	100	5.75		77
GS 81215	75	110	8		77
GS 89315	75	135	12.5		77
LS 75100	75	100	5.75
WS 81115	75		5.75	100
WS 81215	75		8	110
WS 89315	75		12.5	135
AS 80105	80	105	1
GS 81116	80	105	5.75		82
GS 81216	80	115	8.5		82
GS 89316	80	140	12.5		82
LS 80105	80	105	5.75
WS 81116	80		5.75	105
WS 81216	80		8.5	115
AS 85110	85	110	1
GS 81117	85	110	5.75		87
GS 81217	85	125	9.5		88
GS 89317	85	150	13.5		88
LS 85110	85	110	5.75
WS 81117	85		5.75	110
WS 81217	85		9.5	125
AS 90120	90	120	1
GS 81118	90	120	6.5		92
GS 81218	90	135	10.5		93
LS 90120	90	120	6.5
WS 81118	90		6.5	120
WS 81218	90		10.5	135
AS 100135	100	135	1
GS 81120	100	135	7		102
GS 89320	100	170	14.5		103
