NSK BEARINGS various selection , welcome inquiry online or email me directly to : info@cmtgbearing.com.

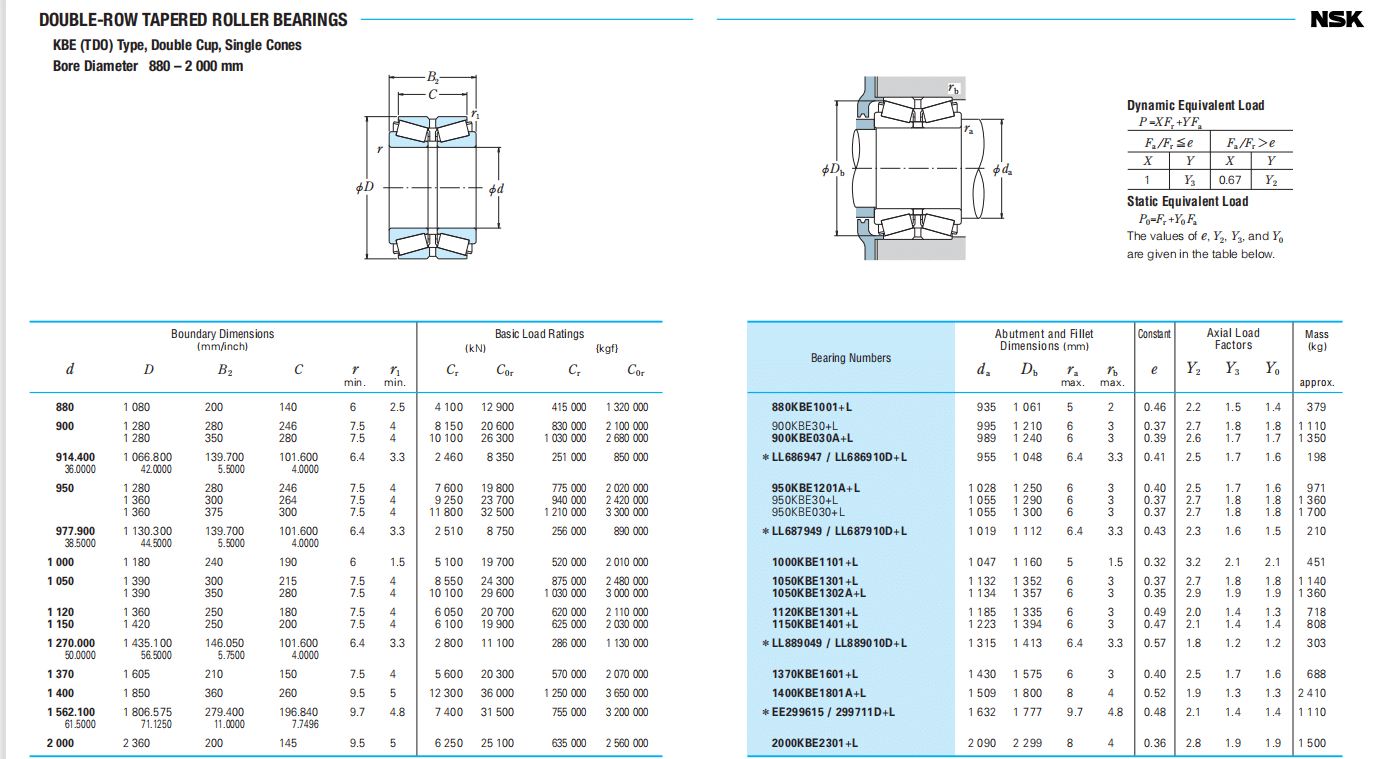

| Bearing Numbers | Abutment and Fillet Dimensions (mm) | rb max . | Constant e |
2 | Axial Load Factors 3 |
0 | Mass (kg) approx . | ||||
| da Db | ra max . | ||||||||||
| 880KBE1001+L | 935 | 1 | 061 | 5 | 2 | 0.46 | 2.2 | 1.5 | 1.4 | 379 | |
| 900KBE30+L | 995 | 1 | 210 | 6 | 3 | 0.37 | 2.7 | 1.8 | 1.8 | 1 110 | |
| 900KBE030A +L | 989 | 1 | 240 | 6 | 3 | 0.39 | 2.6 | 1.7 | 1.7 | 1 350 | |
| * LL686947 / LL686910D+L | 955 | 1 | 048 | 6.4 | 3.3 | 0.41 | 2.5 | 1.7 | 1.6 | 198 | |
| 950KBE1201A + L | 1 | 028 | 1 | 250 | 6 | 3 | 0.40 | 2.5 | 1.7 | 1.6 | 971 |
| 950KBE30+L | 1 | 055 | 1 | 290 | 6 | 3 | 0.37 | 2.7 | 1.8 | 1.8 | 1 360 |
| 950KBE030+L | 1 | 055 | 1 | 300 | 6 | 3 | 0.37 | 2.7 | 1.8 | 1.8 | 1 700 |
| * LL687949 / LL687910D+L | 1 | 019 | 1 | 112 | 6.4 | 3.3 | 0.43 | 2.3 | 1.6 | 1.5 | 210 |
| 1000KBE1101+L | 1 | 047 | 1 | 160 | 5 | 1.5 | 0.32 | 3.2 | 2.1 | 2.1 | 451 |
| 1050KBE1301 + L | 1 | 132 | 1 | 352 | 6 | 3 | 0.37 | 2.7 | 1.8 | 1.8 | 1 140 |
| 1050KBE1302A +L | 1 | 134 | 1 | 357 | 6 | 3 | 0.35 | 2.9 | 1.9 | 1.9 | 1 360 |
| 1120KBE1301 + L | 1 | 185 | 1 | 335 | 6 | 3 | 0.49 | 2.0 | 1.4 | 1.3 | 718 |
| 1150KBE1401 +L | 1 | 223 | 1 | 394 | 6 | 3 | 0.47 | 2.1 | 1.4 | 1.4 | 808 |
| * LL889049 / LL889010D+L | 1 | 315 | 1 | 413 | 6.4 | 3.3 | 0.57 | 1.8 | 1.2 | 1.2 | 303 |
| 1370KBE1601+L | 1 | 430 | 1 | 575 | 6 | 3 | 0.40 | 2.5 | 1.7 | 1.6 | 688 |
| 1400KBE1801A+L | 1 | 509 | 1 | 800 | 8 | 4 | 0.52 | 1.9 | 1.3 | 1.3 | 2 410 |
| * EE299615 / 299711D+L | 1 | 632 | 1 | 777 | 9.7 | 4.8 | 0.48 | 2.1 | 1.4 | 1.4 | 1 110 |
| 2000KBE2301+L | 2 | 090 | 2 | 299 | 8 | 4 | 0.36 | 2.8 | 1.9 | 1.9 | 1 500 |
CMTG BEARING CO.,LIMITED. has been engaged in bearing industry for many years, we provide a wide selections of brands, including FAG bearing, SKF bearing,NSK bearing,Nachi bearing, TIMKEN bearing, THK Linear Guide and Linear Block …ect.
Bearing typies including standard bearing and non-standard bearings, linear bearings, automotive bearings, large bearings, railway bearings,spherical plain bearings, high temperature,super-precision bearings, as well as some rare types customized to your need.
Contact us if any bearing in demand . we will check and revert ASAP.
Your inquiries will have our highest attention.
