TIMKEN BEARINGS
TIMKEN CYLINDRICAL ROLLER BEARINGS

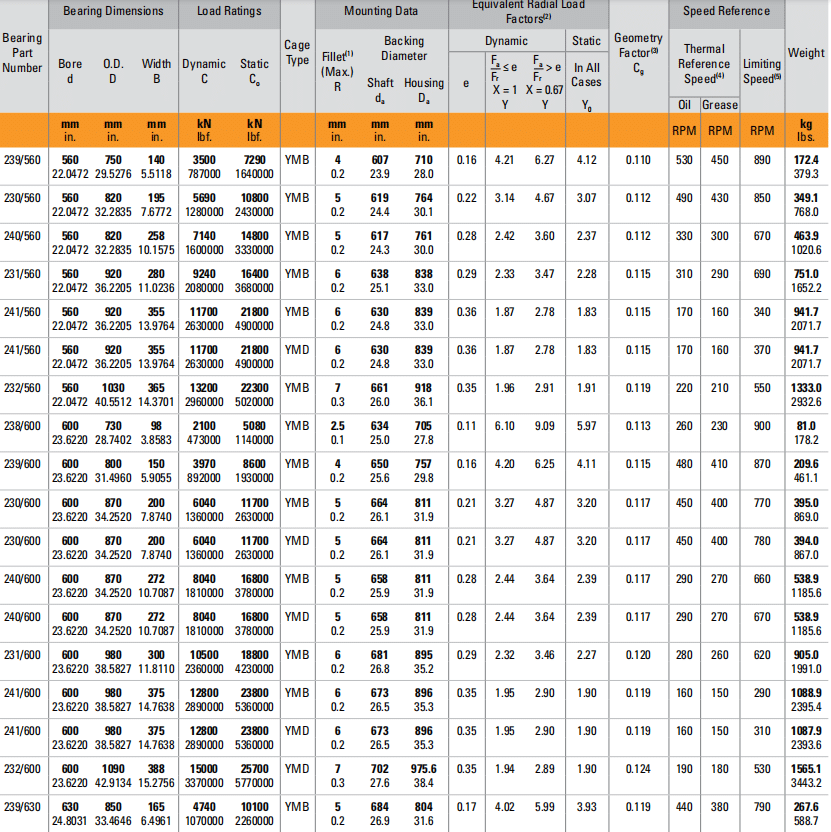

| Bearing Part Number | Bearing Dimensions | Load Ratings | Cage Type | Mounting Data | Equivalent Radial Load Factors | Geometry Factor C, | Speed Reference | Weight | |||||||
| Bore 0.D Width d D B | Dynamic Static C C。 | Backing Fillet” Diameter | Dynamic | Static | Thermal Reference Speed | Limiting Speed | |||||||||
| (Max.) R | Shaft Housing d D。 | e | F se F.>e F F X=1 X=0.67 Y Y | In All Cases Y。 | |||||||||||
| 0il | Grease | ||||||||||||||
| mm mm mm in. in. in. | kN Ibf | kN Ibf. | mm mm mm in. in. in. | RPM | RPM | RPM | kg Ibs. | ||||||||
| 239/560 | 560 750 140 22.047229.5276 5.5118 | 3500 7290 787000 1640000 | YMB | 4 0.2 | 607 23.9 | 710 28.0 | 0.16 | 4.21 6.27 | 4.12 | 0.110 | 530 | 450 | 890 | 172.4 3793 | |
| 230/560 | 560 820 195 22.047232.2835 7.6772 | 5690 10800 1280000 2430000 | YMB | 5 0.2 | 619 24.4 | 764 30.1 | 0.22 | 3.14 4.67 | 3.07 | 0.112 | 490 | 430 | 850 | 349.1 768.0 | |
| 240/560 | 560 820 258 22.047232.283510.1575 | 7140 14800 1600000 3330000 | YMB | 5 617 761 0.2 24.3 30.0 | 0.28 | 2.42 3.60 | 237 | 0.112 | 330 | 300 | 670 | 463.9 1020.6 | |||
| 231/560 | 560 920 280 22.047236.220511.0236 | 9240 16400 2080000 3680000 | YMB | 6 0.2 | 638 25.1 | 838 33.0 | 0.29 | 2.33 3.47 | 2.28 | 0.115 | 310 | 290 | 690 | 751.0 1652.2 | |
| 241/560 | 560 920 355 22.0472 36.2205 13.9764 | 11700 21800 2630000 4900000 | YMB | 6 0.2 | 630 24.8 | 839 33.0 | 0.36 | 1.87 2.78 | 183 | 0.115 | 170 | 160 | 340 | 941.7 2071.7 | |
| 241/560 | 560 920 355 22.0472 36.220513.9764 | 11700 21800 2630000 4900000 | YMD | 6 0.2 | 630 24.8 | 839 33.0 | 0.36 | 1.87 2.78 | 183 | 0.115 | 170 | 160 | 370 | 941.7 2071.7 | |
| 232/560 | 560 1030 365 22.0472 40.551214.3701 | 13200 22300 2960000 5020000 | YMB | 7 0.3 | 661 26.0 | 918 36.1 | 0.35 | 1.96 2.91 | 1.91 | 0.119 | 220 | 210 | 550 | 1333.0 2932.6 | |
| 238/600 | 600 730 98 23.622028.7402 3.8583 | 2100 5080 473000 1140000 | YMB | 25 0.1 | 634 25.0 | 705 27.8 | 0.11 | 6.10 9.09 | 5.97 | 0.113 | 260 | 230 | 900 | 810 178.2 | |
| 239/600 | 600 800 150 23.622031.4960 5.9055 | 3970 8600 892000 1930000 | YMB | 4 0.2 | 650 25.6 | 757 29.8 | 0.16 | 4.20 6.25 | 4.11 | 0.115 | 480 | 410 | 870 | 209.6 461.1 | |
| 230/600 | 600 870 200 23.622034.2520 7.8740 | 6040 11700 1360000 2630000 | YMB | 5 0.2 | 664 26.1 | 811 31.9 | 0.21 | 3.27 4.87 | 3.20 | 0.117 | 450 | 400 | 770 | 395.0 869.0 | |
| 230/600 | 600 870 200 23.6220 34.2520 7.8740 | 6040 11700 13600002630000 | YMD | 5 664 811 0.2 26.1 31.9 | 0.21 | 3.27 4.87 | 3.20 | 0.117 | 450 | 400 | 780 | 394.0 867.0 | |||
| 240/600 | 600 870 272 23.6220 34.252010.7087 | 8040 16800 1810000 3780000 | YMB | 5 0.2 | 658 25.9 | 811 31.9 | 0.28 | 2.44 3.64 | 239 | 0.117 | 290 | 270 | 660 | 538.9 1185.6 | |
| 240/600 | 600 870 272 23.6220 34.2520 10.7087 | 8040 16800 1810000 3780000 | YMD | 5 0.2 | 658 25.9 | 811 31.9 | 0.28 | 2.44 3.64 | 2.39 | 0.117 | 290 | 270 | 670 | 538.9 1185.6 | |
| 231/600 | 600 980 300 23.6220 38.582711.8110 | 10500 18800 2360000 4230000 | YMB | 6 681 895 0.2 26.8 35.2 | 0.29 | 2.32 3.46 | 2.27 | 0.120 | 280 | 260 | 620 | 905.0 1991.0 | |||
| 241/600 | 600 980 375 23.622038.582714.7638 | 12800 23800 2890000 5360000 | YMB | 6 0.2 | 673 26.5 | 896 35.3 | 0.35 | 1.95 2.90 | 190 | 0.119 | 160 | 150 | 290 | 1088.9 2395.4 | |
| 241/600 | 600 980 375 23.622038.5827 14.7638 | 12800 23800 2890000 5360000 | YMD | 6 673 896 0.2 26.5 35.3 | 0.35 | 1.95 2.90 | 190 | 0.119 | 160 | 150 | 310 | 1087.9 2393.6 | |||
| 232/600 | 600 1090 388 23.622042.913415.2756 | 15000 25700 3370000 5770000 | YMD | 7 0.3 | 702 975.6 27.6 38.4 | 0.35 | 1.94 2.89 | 190 | 0.124 | 190 | 180 | 530 | 1565.1 3443.2 | ||
| 239/630 | 630 850 165 24.803133.46466.4961 | 4740 10100 1070000 2260000 | YMB | 5 0.2 | 684 26.9 | 804 31.6 | 0.17 | 4.02 5.99 | 3.93 | 0.119 | 440 | 380 | 790 | 267.6 588.7 | |
