TIMKEN BEARINGS
TIMKEN CYLINDRICAL ROLLER BEARINGS

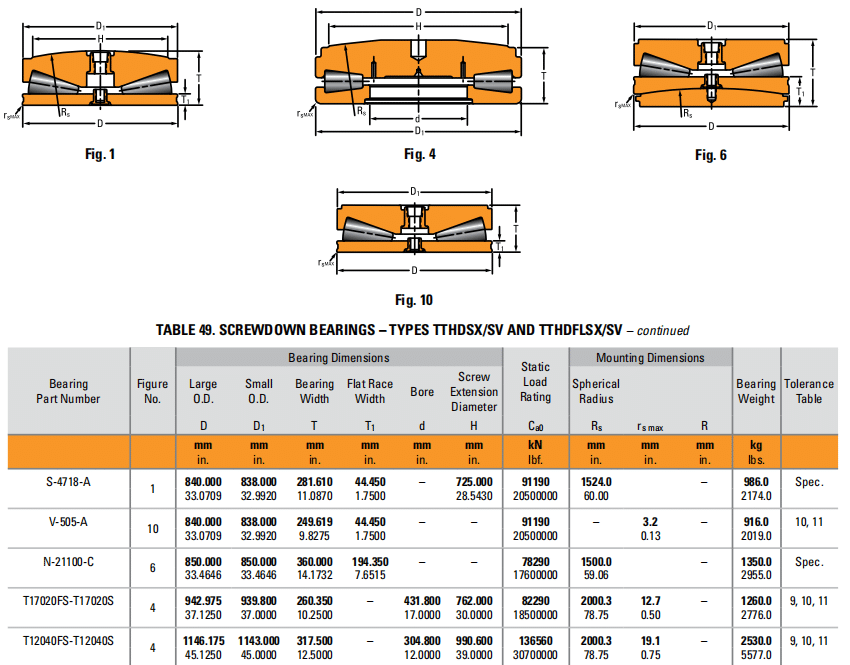

| Bearing Partย Number | Figureย No. | Large O.D. D | Small O.D. D1 | Bearingย Dimensions | Bore d | Screwย ย Extensionย Diameter H | Static Load Rating Ca0 | Mountingย Dimensions Spherical Radius | Bearingย Weight | Toleranceย Table | |||
| Bearingย Width T | Flatย Raceย Width T1 | ||||||||||||
| Rs | rs max | R | |||||||||||
| mm in. | mm in. | mm in. | mm in. | mm in. | mm in. | kN lbf. | mm in. | mm in. | mm in. | kg lbs. | |||
| S-4718-A | 1 | 840.000 33.0709 | 838.000 32.9920 | 281.610 11.0870 | 44.450 1.7500 | โ | 725.000 28.5430 | 91190 20500000 | 1524.0 60.00 | โ | 986.0 2174.0 | Spec. | |
| V-505-A | 10 | 840.000 33.0709 | 838.000 32.9920 | 249.619 9.8275 | 44.450 1.7500 | โ | โ | 91190 20500000 | โ | 3.2 0.13 | โ | 916.0 2019.0 | 10,ย 11 |
| N-21100-C | 6 | 850.000 33.4646 | 850.000 33.4646 | 360.000 14.1732 | 194.350 7.6515 | โ | โ | 78290 17600000 | 1500.0 59.06 | โ | 1350.0 2955.0 | Spec. | |
| T17020FS-T17020S | 4 | 942.975 37.1250 | 939.800 37.0000 | 260.350 10.2500 | โ | 431.800 17.0000 | 762.000 30.0000 | 82290 18500000 | 2000.3 78.75 | 12.7 0.50 | โ | 1260.0 2776.0 | 9,ย 10,ย 11 |
| T12040FS-T12040S | 4 | 1146.175 45.1250 | 1143.000 45.0000 | 317.500 12.5000 | โ | 304.800 12.0000 | 990.600 39.0000 | 136560 30700000 | 2000.3 78.75 | 19.1 0.75 | โ | 2530.0 5577.0 | 9,ย 10,ย 11 |
