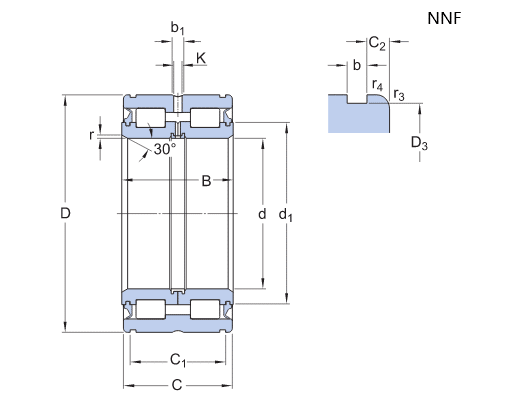

SKF Cylindrical roller bearings, double row, full complement NNF 5048 B-2LS

Double row cylindrical roller bearing

Double row cylindrical roller bearings are designed to accommodate high to very high radial loads in combination with medium to high speeds. The SKF assortment includes many designs and variants, such as standard and full complement bearings and also greased and sealed bearings. Depending on the configuration of the outer and inner rings, the bearings are available in locating as well as non-locating designs.

High to very high radial load carrying capacity
Low friction
Long service life

SKF BEARINGS various selection , welcome inquiry online or email me directly to : info@cmtgbearing.com.

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C₀[kN]	[r/min]	[r/min]
NNF 5006 ADB-2LSV	30	55	34	57.2	75		2 600
NNF 5007 ADB-2LSV	35	62	36	70.4	98		2 200
NNF 5008 ADB-2LSV	40	68	38	85.8	116		2 000
NNF 5009 ADB-2LSV	45	75	40	102	146		1 800
NNF 5010 ADB-2LSV	50	80	40	108	160		1 700
NNF 5011 ADB-2LSV	55	90	46	128	193		1 500
NNF 5012 ADB-2LSV	60	95	46	134	208		1 400
NNF 5013 ADB-2LSV	65	100	46	138	224		1 300
NNF 5014 ADB-2LSV	70	110	54	187	285		1 200
NNF 5015 ADB-2LSV	75	115	54	224	310		1 100
NNF 5016 ADA-2LSV	80	125	60	251	415		1 000
NNF 5017 ADA-2LSV	85	130	60	270	430		1 000
NNF 5018 ADA-2LSV	90	140	67	319	550		900
NNF 5020 ADA-2LSV	100	150	67	336	570		850
NNF 5022 ADA-2LSV	110	170	80	413	695		750
NNF 5024 ADA-2LSV	120	180	80	429	750		700
NNF 5026 ADA-2LSV	130	200	95	616	1 040		630
NNF 5028 ADA-2LSV	140	210	95	644	1 120		600
NNF 5030 ADA-2LSV	150	225	100	748	1 290		560
NNF 5032 ADA-2LSV	160	240	109	781	1 400		500
NNF 5034 ADA-2LSV	170	260	122	1 010	1 800		480
NNF 5036 ADA-2LSV	180	280	136	1 170	2 120		450
NNF 5038 ADA-2LSV	190	290	136	1 190	2 200		430
NNF 5040 ADA-2LSV	200	310	150	1 450	2 900		400
NNF 5044 B-2LS	220	340	160	1 610	3 100		360
NNF 5048 B-2LS	240	360	160	1 680	3 350		340
NNF 5052 B-2LS	260	400	190	2 420	4 650		300
NNF 5056 B-2LS	280	420	190	2 550	5 000		280
