KOYO BEARING

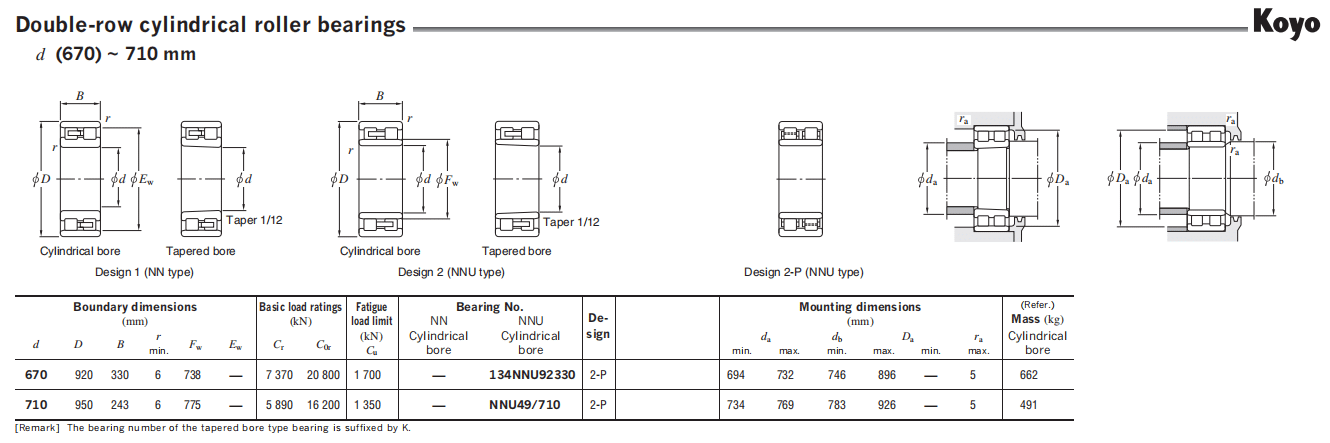

| Boundary dimensions | Basic load ratings | Fatigue | Bearing No. | Mounting dimensions | (Refer.) | ||||||||||||
| (mm) | (kN) | load limit | NN | NNU | De- | (mm) | Mass (kg) | ||||||||||
| d | D B | r min. | Ew | Cr | C0r | (kN) Cu | Cylindrical bore | Cylindrical bore | sign | min. | da max. | db min. | Da max. | min. | ra max. | Cylindrical bore | |
| 670 | 920 330 6 738 | 7 370 | 20 800 | 1 700 | — | 134NNU92330 | 2-P | 694 | 732 | 746 | 896 | — | 5 | 662 | |||
| 710 | 950 243 6 775 | 5 890 | 16 200 | 1 350 | — | NNU49/710 | 2-P | 734 | 769 | 783 | 926 | — | 5 | 491 | |||
CMTG BEARING CO.,LIMITED. has been engaged in bearing industry for many years, we provide a wide selections of brands, including FAG bearing, SKF bearing,NSK bearing,Nachi bearing, TIMKEN bearing, THK Linear Guide and Linear Block …ect.
Bearing typies including standard bearing and non-standard bearings, linear bearings, automotive bearings, large bearings, railway bearings,spherical plain bearings, high temperature,super-precision bearings, as well as some rare types customized to your need.
Contact us if any bearing in demand . we will check and revert ASAP.
