KOYO BEAIRNG

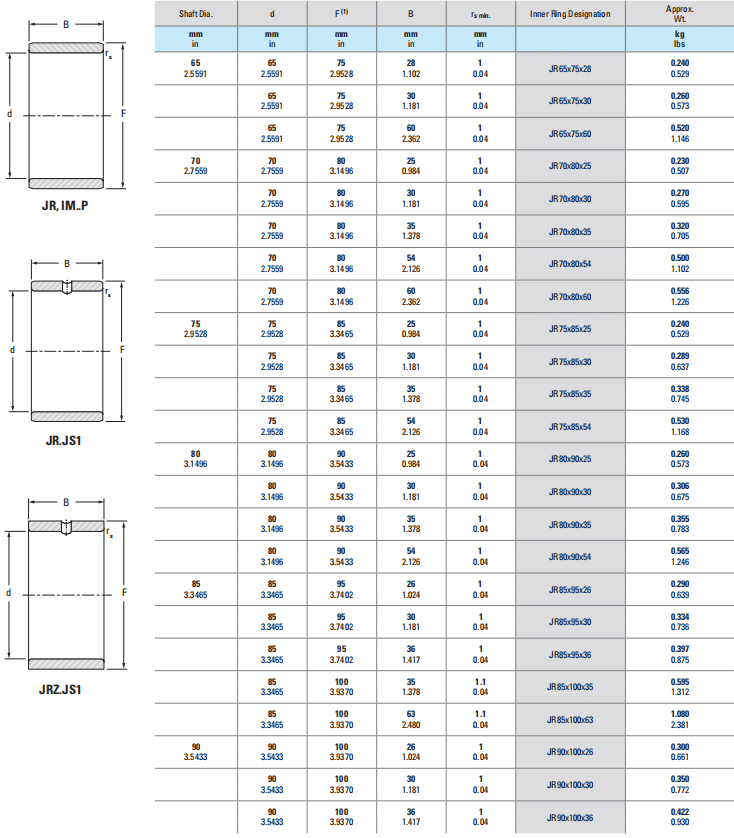

| Shaftย Dia. | d | F(1) | B | rsย min. | Inner Ringย Designation | Approx. Wt. |
| mm in | mm in | mm in | mm in | mm in | kg lbs | |
| 65 2.5591 | 65 2.5591 | 75 2.9528 | 28 1.102 | 1 0.04 | JR65x75x28 | 0.240 0.529 |
| 65 2.5591 | 75 2.9528 | 30 1.181 | 1 0.04 | JR65x75x30 | 0.260 0.573 | |
| 65 2.5591 | 75 2.9528 | 60 2.362 | 1 0.04 | JR65x75x60 | 0.520 1.146 | |
| 70 2.7559 | 70 2.7559 | 80 3.1496 | 25 0.984 | 1 0.04 | JR70x80x25 | 0.230 0.507 |
| 70 2.7559 | 80 3.1496 | 30 1.181 | 1 0.04 | JR70x80x30 | 0.270 0.595 | |
| 70 2.7559 | 80 3.1496 | 35 1.378 | 1 0.04 | JR70x80x35 | 0.320 0.705 | |
| 70 2.7559 | 80 3.1496 | 54 2.126 | 1 0.04 | JR70x80x54 | 0.500 1.102 | |
| 70 2.7559 | 80 3.1496 | 60 2.362 | 1 0.04 | JR70x80x60 | 0.556 1.226 | |
| 75 2.9528 | 75 2.9528 | 85 3.3465 | 25 0.984 | 1 0.04 | JR75x85x25 | 0.240 0.529 |
| 75 2.9528 | 85 3.3465 | 30 1.181 | 1 0.04 | JR75x85x30 | 0.289 0.637 | |
| 75 2.9528 | 85 3.3465 | 35 1.378 | 1 0.04 | JR75x85x35 | 0.338 0.745 | |
| 75 2.9528 | 85 3.3465 | 54 2.126 | 1 0.04 | JR75x85x54 | 0.530 1.168 | |
| 80 3.1496 | 80 3.1496 | 90 3.5433 | 25 0.984 | 1 0.04 | JR80x90x25 | 0.260 0.573 |
| 80 3.1496 | 90 3.5433 | 30 1.181 | 1 0.04 | JR80x90x30 | 0.306 0.675 | |
| 80 3.1496 | 90 3.5433 | 35 1.378 | 1 0.04 | JR80x90x35 | 0.355 0.783 | |
| 80 3.1496 | 90 3.5433 | 54 2.126 | 1 0.04 | JR80x90x54 | 0.565 1.246 | |
| 85 3.3465 | 85 3.3465 | 95 3.7402 | 26 1.024 | 1 0.04 | JR85x95x26 | 0.290 0.639 |
| 85 3.3465 | 95 3.7402 | 30 1.181 | 1 0.04 | JR85x95x30 | 0.334 0.736 | |
| 85 3.3465 | 95 3.7402 | 36 1.417 | 1 0.04 | JR85x95x36 | 0.397 0.875 | |
| 85 3.3465 | 100 3.9370 | 35 1.378 | 1.1 0.04 | JR85x100x35 | 0.595 1.312 | |
| 85 3.3465 | 100 3.9370 | 63 2.480 | 1.1 0.04 | JR85x100x63 | 1.080 2.381 | |
| 90 3.5433 | 90 3.5433 | 100 3.9370 | 26 1.024 | 1 0.04 | JR90x100x26 | 0.300 0.661 |
| 90 3.5433 | 100 3.9370 | 30 1.181 | 1 0.04 | JR90x100x30 | 0.350 0.772 | |
| 90 3.5433 | 100 3.9370 | 36 1.417 | 1 0.04 | JR90x100x36 | 0.422 0.930 |
