KOYO BEAIRNG

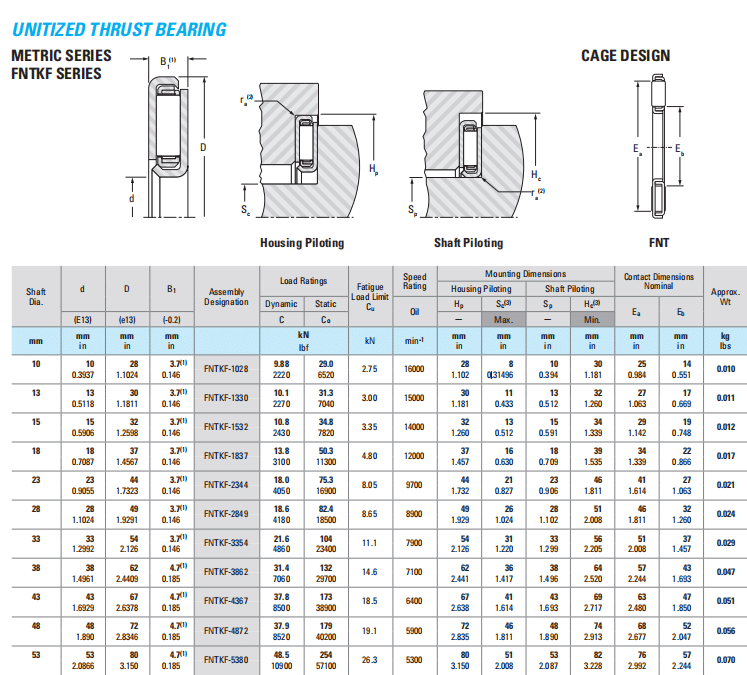

| Shaft Dia. | d | D | B1 | Assembly Designation | Load Ratings | Fatigue Load Limit Cu | Speed Rating | Mounting Dimensions | Contact Dimensions Nominal | Approx. Wt | |||||
| Housing Piloting | Shaft Piloting | ||||||||||||||
| Dynamic | Static | Oil | Hp | Sc(3) | Sp | Hc(3) | Ea | Eb | |||||||
| (E13) | (e13) | (-0.2) | C | Co | – | Max. | – | Min. | |||||||
| mm | mm in | mm in | mm in | kN lbf | kN | min-1 | mm in | mm in | mm in | mm in | mm in | mm in | kg lbs | ||
| 10 | 10 0.3937 | 28 1.1024 | 3.7(1) 0.146 | FNTKF-1028 | 9.88 2220 | 29.0 6520 | 2.75 | 16000 | 28 1.102 | 8 0.31496 | 10 0.394 | 30 1.181 | 25 0.984 | 14 0.551 | 0.010 |
| 13 | 13 0.5118 | 30 1.1811 | 3.7(1) 0.146 | FNTKF-1330 | 10.1 2270 | 31.3 7040 | 3.00 | 15000 | 30 1.181 | 11 0.433 | 13 0.512 | 32 1.260 | 27 1.063 | 17 0.669 | 0.011 |
| 15 | 15 0.5906 | 32 1.2598 | 3.7(1) 0.146 | FNTKF-1532 | 10.8 2430 | 34.8 7820 | 3.35 | 14000 | 32 1.260 | 13 0.512 | 15 0.591 | 34 1.339 | 29 1.142 | 19 0.748 | 0.012 |
| 18 | 18 0.7087 | 37 1.4567 | 3.7(1) 0.146 | FNTKF-1837 | 13.8 3100 | 50.3 11300 | 4.80 | 12000 | 37 1.457 | 16 0.630 | 18 0.709 | 39 1.535 | 34 1.339 | 22 0.866 | 0.017 |
| 23 | 23 0.9055 | 44 1.7323 | 3.7(1) 0.146 | FNTKF-2344 | 18.0 4050 | 75.3 16900 | 8.05 | 9700 | 44 1.732 | 21 0.827 | 23 0.906 | 46 1.811 | 41 1.614 | 27 1.063 | 0.021 |
| 28 | 28 1.1024 | 49 1.9291 | 3.7(1) 0.146 | FNTKF-2849 | 18.6 4180 | 82.4 18500 | 8.65 | 8900 | 49 1.929 | 26 1.024 | 28 1.102 | 51 2.008 | 46 1.811 | 32 1.260 | 0.024 |
| 33 | 33 1.2992 | 54 2.126 | 3.7(1) 0.146 | FNTKF-3354 | 21.6 4860 | 104 23400 | 11.1 | 7900 | 54 2.126 | 31 1.220 | 33 1.299 | 56 2.205 | 51 2.008 | 37 1.457 | 0.029 |
| 38 | 38 1.4961 | 62 2.4409 | 4.7(1) 0.185 | FNTKF-3862 | 31.4 7060 | 132 29700 | 14.6 | 7100 | 62 2.441 | 36 1.417 | 38 1.496 | 64 2.520 | 57 2.244 | 43 1.693 | 0.047 |
| 43 | 43 1.6929 | 67 2.6378 | 4.7(1) 0.185 | FNTKF-4367 | 37.8 8500 | 173 38900 | 18.5 | 6400 | 67 2.638 | 41 1.614 | 43 1.693 | 69 2.717 | 63 2.480 | 47 1.850 | 0.051 |
| 48 | 48 1.890 | 72 2.8346 | 4.7(1) 0.185 | FNTKF-4872 | 37.9 8520 | 179 40200 | 19.1 | 5900 | 72 2.835 | 46 1.811 | 48 1.890 | 74 2.913 | 68 2.677 | 52 2.047 | 0.056 |
| 53 | 53 2.0866 | 80 3.150 | 4.7(1) 0.185 | FNTKF-5380 | 48.5 10900 | 254 57100 | 26.3 | 5300 | 80 3.150 | 51 2.008 | 53 2.087 | 82 3.228 | 76 2.992 | 57 2.244 | 0.070 |
