KOYO BEAIRNG

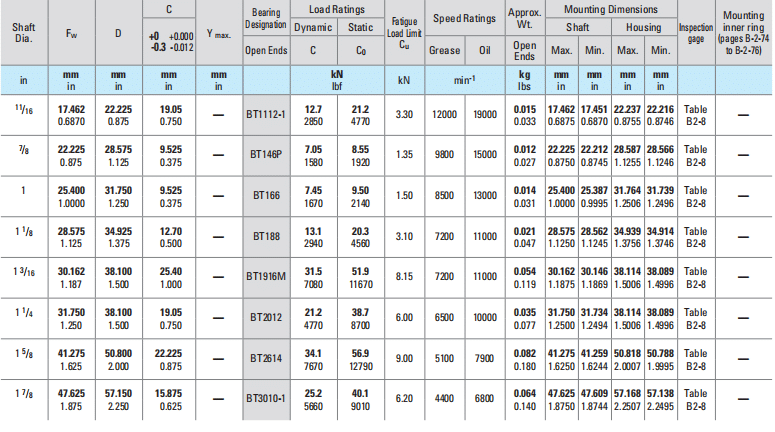

| Shaft Dia. | Fw | D | C | Y max. | Bearing Designation | Load Ratings | Fatigue Load Limit Cu | Speed Ratings | Approx. Wt. | Mounting Dimensions | Inspection gage | Mounting inner ring (pages B-2-74 to B-2-76) | |||||
| +0 +0.000 -0.3 -0.012 | Dynamic | Static | Shaft | Housing | |||||||||||||
| Open Ends | C | C0 | Grease | Oil | Open Ends | Max. | Min. | Max. | Min. | ||||||||
| in | mm in | mm in | mm in | mm in | kN lbf | kN | min-1 | kg lbs | mm in | mm in | mm in | mm in | |||||
| 11/16 | 17.462 0.6870 | 22.225 0.875 | 19.05 0.750 | — | BT1112-1 | 12.7 2850 | 21.2 4770 | 3.30 | 12000 | 19000 | 0.015 0.033 | 17.462 0.6875 | 17.451 0.6870 | 22.237 0.8755 | 22.216 0.8746 | Table B2-8 | |
| 7/8 | 22.225 0.875 | 28.575 1.125 | 9.525 0.375 | — | BT146P | 7.05 1580 | 8.55 1920 | 1.35 | 9800 | 15000 | 0.012 0.027 | 22.225 0.8750 | 22.212 0.8745 | 28.587 1.1255 | 28.566 1.1246 | Table B2-8 | |
| 1 | 25.400 1.0000 | 31.750 1.250 | 9.525 0.375 | BT166 | 7.45 1670 | 9.50 2140 | 1.50 | 8500 | 13000 | 0.014 0.031 | 25.400 1.0000 | 25.387 0.9995 | 31.764 1.2506 | 31.739 1.2496 | Table B2-8 | ||
| 11/8 | 28.575 1.125 | 34.925 1.375 | 12.70 0.500 | — | BT188 | 13.1 2940 | 20.3 4560 | 3.10 | 7200 | 11000 | 0.021 0.047 | 28.575 1.1250 | 28.562 1.1245 | 34.939 1.3756 | 34.914 1.3746 | Table B2-8 | — |
| 13/16 | 30.162 1.187 | 38.100 1.500 | 25.40 1.000 | BT1916M | 31.5 7080 | 51.9 11670 | 8.15 | 7200 | 11000 | 0.054 0.119 | 30.162 1.1875 | 30.146 1.1869 | 38.114 1.5006 | 38.089 1.4996 | Table B2-8 | ||
| 11/4 | 31.750 1.250 | 38.100 1.500 | 19.05 0.750 | — | BT2012 | 21.2 4770 | 38.7 8700 | 6.00 | 6500 | 10000 | 0.035 0.077 | 31.750 1.2500 | 31.734 1.2494 | 38.114 1.5006 | 38.089 1.4996 | Table B2-8 | — |
| 15/8 | 41.275 1.625 | 50.800 2.000 | 22.225 0.875 | BT2614 | 34.1 7670 | 56.9 12790 | 9.00 | 5100 | 7900 | 0.082 0.180 | 41.275 1.6250 | 41.259 1.6244 | 50.818 2.0007 | 50.788 1.9995 | Table B2-8 | ||
| 17/8 | 47.625 1.875 | 57.150 2.250 | 15.875 0.625 | BT3010-1 | 25.2 5660 | 40.1 9010 | 6.20 | 4400 | 6800 | 0.064 0.140 | 47.625 1.8750 | 47.609 1.8744 | 57.168 2.2507 | 57.138 2.2495 | Table B2-8 | ||
