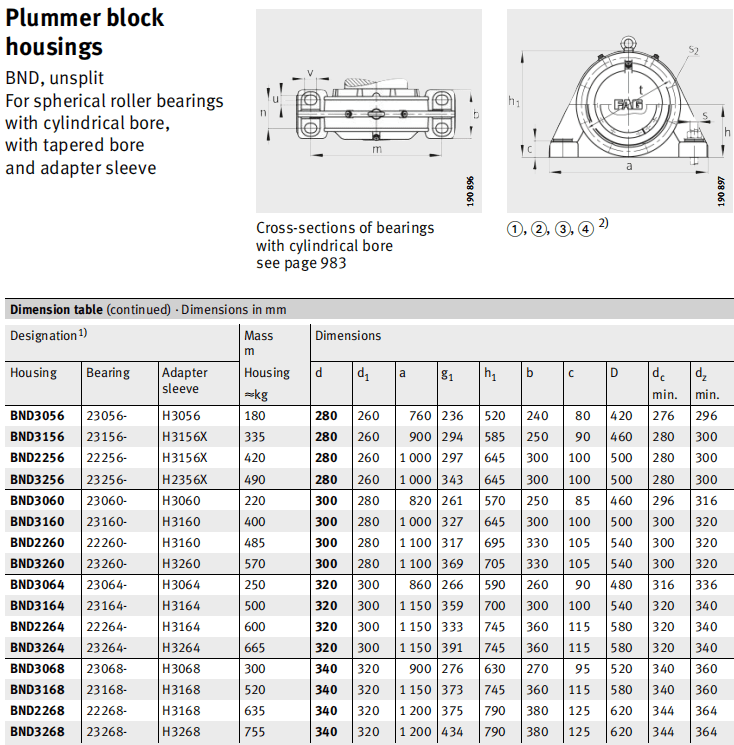

| Designation¹) | Mass m Housing =kg | Dimensions | |||||||||||
| Housing | Bearing | Adapter sleeve | d | ₁ | a | 81 | ₁ | b | C | D | d. min. | d₂ min. | |
| BND3056 | 23056- | H3056 | 180 | 280 | 260 | 760 | 236 | 520 | 240 | 80 | 420 | 276 | 296 |
| BND3156 | 23156- | H3156X | 335 | 280 | 260 | 900 | 294 | 585 | 250 | 90 | 460 | 280 | 300 |
| BND2256 | 22256- | H3156X | 420 | 280 | 260 | 1000 | 297 | 645 | 300 | 100 | 500 | 280 | 300 |
| BND3256 | 23256- | H2356X | 490 | 280 | 260 | 1000 | 343 | 645 | 300 | 100 | 500 | 280 | 300 |
| BND3060 | 23060- | H3060 | 220 | 300 | 280 | 820 | 261 | 570 | 250 | 85 | 460 | 296 | 316 |
| BND3160 | 23160- | H3160 | 400 | 300 | 280 | 1000 | 327 | 645 | 300 | 100 | 500 | 300 | 320 |
| BND2260 | 22260- | H3160 | 485 | 300 | 280 | 1100 | 317 | 695 | 330 | 105 | 540 | 300 | 320 |
| BND3260 | 23260- | H3260 | 570 | 300 | 280 | 1100 | 369 | 705 | 330 | 105 | 540 | 300 | 320 |
| BND3064 | 23064- | H3064 | 250 | 320 | 300 | 860 | 266 | 590 | 260 | 90 | 480 | 316 | 336 |
| BND3164 | 23164- | H3164 | 500 | 320 | 300 | 1150 | 359 | 700 | 300 | 100 | 540 | 320 | 340 |
| BND2264 | 22264- | H3164 | 600 | 320 | 300 | 1150 | 333 | 745 | 360 | 115 | 580 | 320 | 340 |
| BND3264 | 23264- | H3264 | 665 | 320 | 300 | 1150 | 391 | 745 | 360 | 115 | 580 | 320 | 340 |
| BND3068 | 23068- | H3068 | 300 | 340 | 320 | 900 | 276 | 630 | 270 | 95 | 520 | 340 | 360 |
| BND3168 | 23168- | H3168 | 520 | 340 | 320 | 1150 | 373 | 745 | 360 | 115 | 580 | 340 | 360 |
| BND2268 | 22268- | H3168 | 635 | 340 | 320 | 1200 | 375 | 790 | 380 | 125 | 620 | 344 | 364 |
| BND3268 | 23268- | H3268 | 755 | 340 | 320 | 1200 | 434 | 790 | 380 | 125 | 620 | 344 | 364 |
