KOYO BEAIRNG

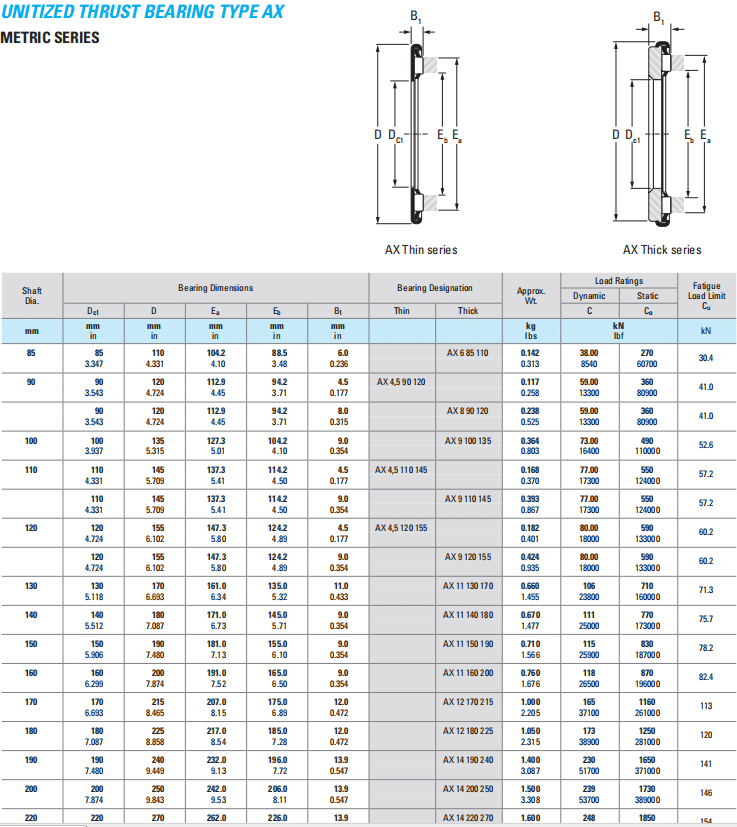

| Shaft Dia. | Bearing Dimensions | Bearing Designation | Approx. Wt. | Load Ratings | Fatigue Load Limit Cu | ||||||
| Dynamic | Static | ||||||||||
| Dc1 | D | Ea | Eb | B1 | Thin | Thick | C | Co | |||
| mm | mm in | mm in | mm in | mm in | mm in | kg lbs | kN lbf | kN | |||
| 85 | 85 3.347 | 110 4.331 | 104.2 4.10 | 88.5 3.48 | 6.0 0.236 | AX 6 85 110 | 0.142 0.313 | 38.00 8540 | 270 60700 | 30.4 | |
| 90 | 90 3.543 | 120 4.724 | 112.9 4.45 | 94.2 3.71 | 4.5 0.177 | AX 4,5 90 120 | 0.117 0.258 | 59.00 13300 | 360 80900 | 41.0 | |
| 90 3.543 | 120 4.724 | 112.9 4.45 | 94.2 3.71 | 8.0 0.315 | AX 8 90 120 | 0.238 0.525 | 59.00 13300 | 360 80900 | 41.0 | ||
| 100 | 100 3.937 | 135 5.315 | 127.3 5.01 | 104.2 4.10 | 9.0 0.354 | AX 9 100 135 | 0.364 0.803 | 73.00 16400 | 490 110000 | 52.6 | |
| 110 | 110 4.331 | 145 5.709 | 137.3 5.41 | 114.2 4.50 | 4.5 0.177 | AX 4,5 110 145 | 0.168 0.370 | 77.00 17300 | 550 124000 | 57.2 | |
| 110 4.331 | 145 5.709 | 137.3 5.41 | 114.2 4.50 | 9.0 0.354 | AX 9 110 145 | 0.393 0.867 | 77.00 17300 | 550 124000 | 57.2 | ||
| 120 | 120 4.724 | 155 6.102 | 147.3 5.80 | 124.2 4.89 | 4.5 0.177 | AX 4,5 120 155 | 0.182 0.401 | 80.00 18000 | 590 133000 | 60.2 | |
| 120 4.724 | 155 6.102 | 147.3 5.80 | 124.2 4.89 | 9.0 0.354 | AX 9 120 155 | 0.424 0.935 | 80.00 18000 | 590 133000 | 60.2 | ||
| 130 | 130 5.118 | 170 6.693 | 161.0 6.34 | 135.0 5.32 | 11.0 0.433 | AX 11 130 170 | 0.660 1.455 | 106 23800 | 710 160000 | 71.3 | |
| 140 | 140 5.512 | 180 7.087 | 171.0 6.73 | 145.0 5.71 | 9.0 0.354 | AX 11 140 180 | 0.670 1.477 | 111 25000 | 770 173000 | 75.7 | |
| 150 | 150 5.906 | 190 7.480 | 181.0 7.13 | 155.0 6.10 | 9.0 0.354 | AX 11 150 190 | 0.710 1.566 | 115 25900 | 830 187000 | 78.2 | |
| 160 | 160 6.299 | 200 7.874 | 191.0 7.52 | 165.0 6.50 | 9.0 0.354 | AX 11 160 200 | 0.760 1.676 | 118 26500 | 870 196000 | 82.4 | |
| 170 | 170 6.693 | 215 8.465 | 207.0 8.15 | 175.0 6.89 | 12.0 0.472 | AX 12 170 215 | 1.000 2.205 | 165 37100 | 1160 261000 | 113 | |
| 180 | 180 7.087 | 225 8.858 | 217.0 8.54 | 185.0 7.28 | 12.0 0.472 | AX 12 180 225 | 1.050 2.315 | 173 38900 | 1250 281000 | 120 | |
| 190 | 190 7.480 | 240 9.449 | 232.0 9.13 | 196.0 7.72 | 13.9 0.547 | AX 14 190 240 | 1.400 3.087 | 230 51700 | 1650 371000 | 141 | |
| 200 | 200 7.874 | 250 9.843 | 242.0 9.53 | 206.0 8.11 | 13.9 0.547 | AX 14 200 250 | 1.500 3.308 | 239 53700 | 1730 389000 | 146 | |
| 220 | 220 8.661 | 270 10.630 | 262.0 10.32 | 226.0 8.90 | 13.9 0.547 | AX 14 220 270 | 1.600 3.528 | 248 55800 | 1850 416000 | 154 | |
| 240 | 240 9.449 | 300 11.811 | 286.0 11.26 | 246.0 9.69 | 14.9 0.587 | AX 15 240 300 | 2.300 5.072 | 280 62900 | 2240 504000 | 175 | |
