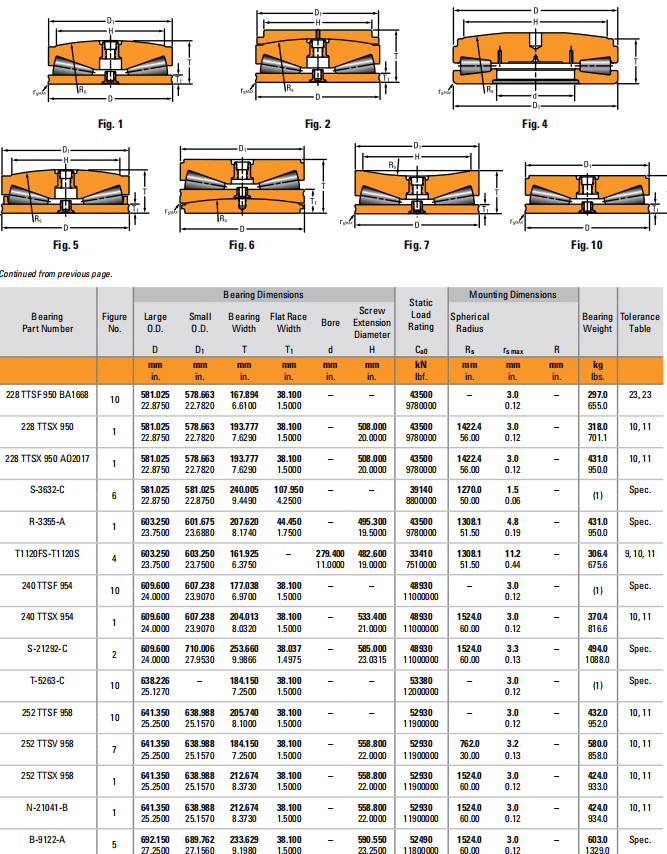

240 TTSF 954 TIMKEN BEARING

TIMKEN BEARINGS

THRUST CYLINDRICAL ROLLER BEARINGS

TIMKEN BEARINGS

TIMKEN CYLINDRICAL ROLLER BEARINGS

Bearing

Part Number

Figure No.

Large

O.D.

Small O.D.

Bearing Dimensions

Bore

Screw Extension Diameter

Static

Load

Rating

Ca0

Mounting Dimensions

Spherical

Radius

Bearing Weight

Tolerance Table

Bearing Width

Flat Race Width

rs max

in.

lbf.

in.

lbs.

228 TTSF 950 BA1668

581.025

22.8750

578.663

22.7820

167.894

6.6100

38.100

1.5000

–

43500

9780000

–

3.0

0.12

–

297.0

655.0

23, 23

228 TTSX 950

581.025

22.8750

578.663

22.7820

193.777

7.6290

38.100

1.5000

–

508.000

20.0000

43500

9780000

1422.4

56.00

3.0

0.12

–

318.0

701.1

10, 11

228 TTSX 950 AO2017

581.025

22.8750

578.663

22.7820

193.777

7.6290

38.100

1.5000

–

508.000

20.0000

43500

9780000

1422.4

56.00

3.0

0.12

–

431.0

950.0

10, 11

S-3632-C

581.025

22.8750

581.025

22.8750

240.005

9.4490

107.950

4.2500

–

39140

8800000

1270.0

50.00

1.5

0.06

–

(1)

Spec.

R-3355-A

603.250

23.7500

601.675

23.6880

207.620

8.1740

44.450

1.7500

–

495.300

19.5000

43500

9780000

1308.1

51.50

4.8

0.19

–

431.0

950.0

Spec.

T1120FS-T1120S

603.250

23.7500

603.250

23.7500

161.925

6.3750

–

279.400

11.0000

482.600

19.0000

33410

7510000

1308.1

51.50

11.2

0.44

–

306.4

675.6

9, 10, 11

240 TTSF 954

609.600

24.0000

607.238

23.9070

177.038

6.9700

38.100

1.5000

–

48930

11000000

–

3.0

0.12

–

(1)

Spec.

240 TTSX 954

609.600

24.0000

607.238

23.9070

204.013

8.0320

38.100

1.5000

–

533.400

21.0000

48930

11000000

1524.0

60.00

3.0

0.12

–

370.4

816.6

10, 11

S-21292-C

609.600

24.0000

710.006

27.9530

253.660

9.9866

38.037

1.4975

–

585.000

23.0315

48930

11000000

1524.0

60.00

3.3

0.13

–

494.0

1088.0

Spec.

T-5263-C

638.226

25.1270

–

184.150

7.2500

38.100

1.5000

–

53380

12000000

–

3.0

0.12

–

(1)

Spec.

252 TTSF 958

641.350

25.2500

638.988

25.1570

205.740

8.1000

38.100

1.5000

–

52930

11900000

–

3.0

0.12

–

432.0

952.0

10, 11

252 TTSV 958

641.350

25.2500

638.988

25.1570

184.150

7.2500

38.100

1.5000

–

558.800

22.0000

52930

11900000

762.0

30.00

3.2

0.13

–

580.0

858.0

10, 11

252 TTSX 958

641.350

25.2500

638.988

25.1570

212.674

8.3730

38.100

1.5000

–

558.800

22.0000

52930

11900000

1524.0

60.00

3.0

0.12

–

424.0

933.0

10, 11

N-21041-B

641.350

25.2500

638.988

25.1570

212.674

8.3730

38.100

1.5000

–

558.800

22.0000

52930

11900000

1524.0

60.00

3.0

0.12

–

424.0

934.0

10, 11

B-9122-A

692.150

27.2500

689.762

27.1560

233.629

9.1980

38.100

1.5000

–

590.550

23.2500

52490

11800000

1524.0

60.00

3.0

0.12

–

603.0

1329.0

Spec.
