KOYO BEAIRNG

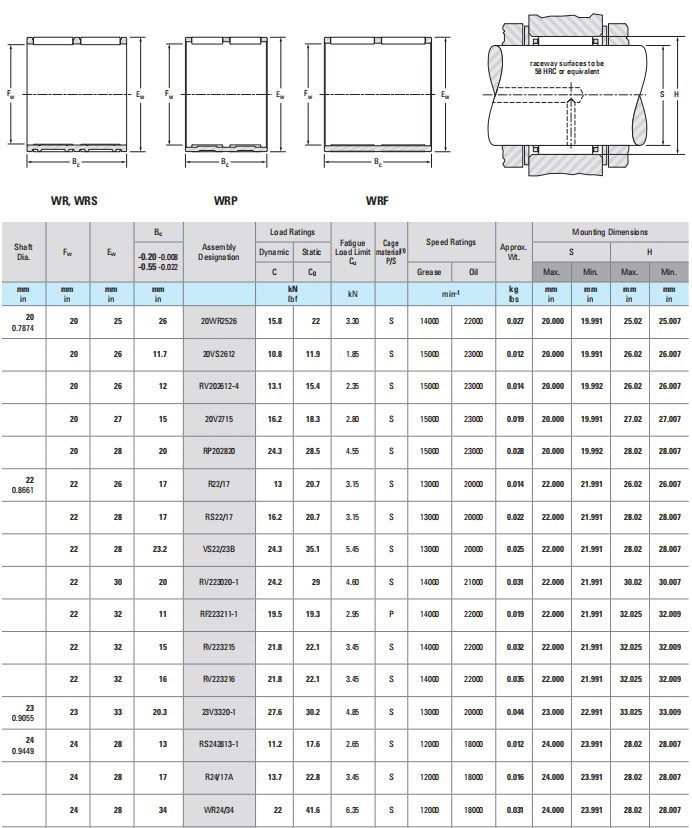

| Shaft Dia. | Fw | Ew | Bc | Assembly Designation | Load Ratings | Fatigue Load Limit Cu | Cage material(1) P/S | Speed Ratings | Approx. Wt. | Mounting Dimensions | |||||
| -0.20 -0.008 -0.55 -0.022 | Dynamic | Static | S | H | |||||||||||
| C | C0 | Grease | Oil | Max. | Min. | Max. | Min. | ||||||||
| mm in | mm in | mm in | mm in | kN lbf | kN | min-1 | kg lbs | mm in | mm in | mm in | mm in | ||||
| 20 0.7874 | 20 | 25 | 26 | 20WR2526 | 15.8 | 22 | 3.30 | S | 14000 | 22000 | 0.027 | 20.000 | 19.991 | 25.02 | 25.007 |
| 20 | 26 | 11.7 | 20VS2612 | 10.8 | 11.9 | 1.85 | S | 15000 | 23000 | 0.012 | 20.000 | 19.991 | 26.02 | 26.007 | |
| 20 | 26 | 12 | RV202612-4 | 13.1 | 15.4 | 2.35 | S | 15000 | 23000 | 0.014 | 20.000 | 19.992 | 26.02 | 26.007 | |
| 20 | 27 | 15 | 20V2715 | 16.2 | 18.3 | 2.80 | S | 15000 | 23000 | 0.019 | 20.000 | 19.991 | 27.02 | 27.007 | |
| 20 | 28 | 20 | RP202820 | 24.3 | 28.5 | 4.55 | S | 15000 | 23000 | 0.028 | 20.000 | 19.992 | 28.02 | 28.007 | |
| 22 0.8661 | 22 | 26 | 17 | R22/17 | 13 | 20.7 | 3.15 | S | 13000 | 20000 | 0.014 | 22.000 | 21.991 | 26.02 | 26.007 |
| 22 | 28 | 17 | RS22/17 | 16.2 | 20.7 | 3.15 | S | 13000 | 20000 | 0.022 | 22.000 | 21.991 | 28.02 | 28.007 | |
| 22 | 28 | 23.2 | VS22/23B | 24.3 | 35.1 | 5.45 | S | 13000 | 20000 | 0.025 | 22.000 | 21.991 | 28.02 | 28.007 | |
| 22 | 30 | 20 | RV223020-1 | 24.2 | 29 | 4.60 | S | 14000 | 21000 | 0.031 | 22.000 | 21.991 | 30.02 | 30.007 | |
| 22 | 32 | 11 | RF223211-1 | 19.5 | 19.3 | 2.95 | P | 14000 | 22000 | 0.019 | 22.000 | 21.991 | 32.025 | 32.009 | |
| 22 | 32 | 15 | RV223215 | 21.8 | 22.1 | 3.45 | S | 14000 | 22000 | 0.032 | 22.000 | 21.991 | 32.025 | 32.009 | |
| 22 | 32 | 16 | RV223216 | 21.8 | 22.1 | 3.45 | S | 14000 | 22000 | 0.035 | 22.000 | 21.991 | 32.025 | 32.009 | |
| 23 0.9055 | 23 | 33 | 20.3 | 23V3320-1 | 27.6 | 30.2 | 4.85 | S | 13000 | 20000 | 0.044 | 23.000 | 22.991 | 33.025 | 33.009 |
| 24 0.9449 | 24 | 28 | 13 | RS242813-1 | 11.2 | 17.6 | 2.65 | S | 12000 | 18000 | 0.012 | 24.000 | 23.991 | 28.02 | 28.007 |
| 24 | 28 | 17 | R24/17A | 13.7 | 22.8 | 3.45 | S | 12000 | 18000 | 0.016 | 24.000 | 23.991 | 28.02 | 28.007 | |
| 24 | 28 | 34 | WR24/34 | 22 | 41.6 | 6.35 | S | 12000 | 18000 | 0.031 | 24.000 | 23.991 | 28.02 | 28.007 | |
| 24 | 32 | 15 | RV243215-4 | 20.2 | 23.4 | 3.60 | S | 12000 | 19000 | 0.027 | 24.000 | 23.991 | 32.025 | 32.009 | |
